62 11 280 Removing and installing (replacing) instrument cluster

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection) .

NOTE: Extend steering wheel completely and lower.

Release bolts (1).

Tightening torque: 1.5 Nm.

Fold back instrument cluster (2) in direction of arrow and pull back slightly.

Disconnect associated plug connection.

If necessary, feed out/unclip associated wiring harness.

Remove instrument cluster (2).

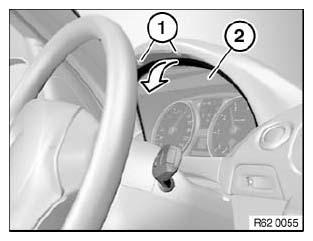

Fig 1: Identifying Instrument Cluster And Mounting Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out vehicle programming/coding
Check values for Condition Based Service (CBS) , correct if necessary
