Top Features
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.
The Z8 convertible top is a semi-automatic electro-hydraulic system that opens and closes the soft top using hydraulic cylinders and an electric motor. It consist of the Convertible Module (CVM) which monitors and controls the complete operation of the soft top system. The CVM interacts with the General Module (GM) which controls the window operation when lowering or raising the soft top. A hard top is standard equipment. Convertible top features include:
- Electro-hydraulic operation.
- Servo assisted electric lock.
- Flexible, easy to replace rear window (zip out).
- Inner headliner.

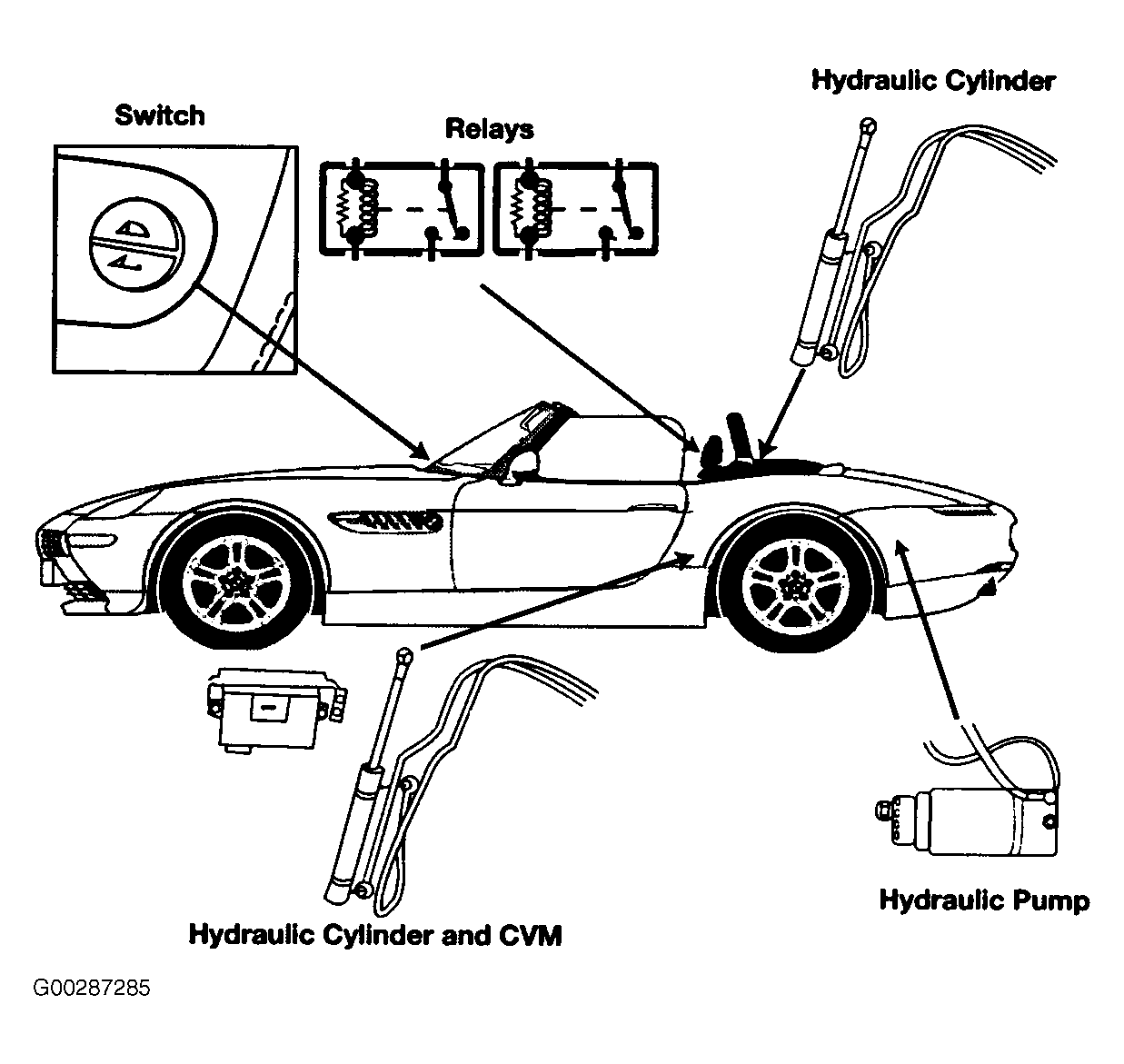

- Emergency operation. See Fig 1 .
