Emergency Closing Operation
WARNING: This page is about a different car, the 2003 BMW Z8, 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

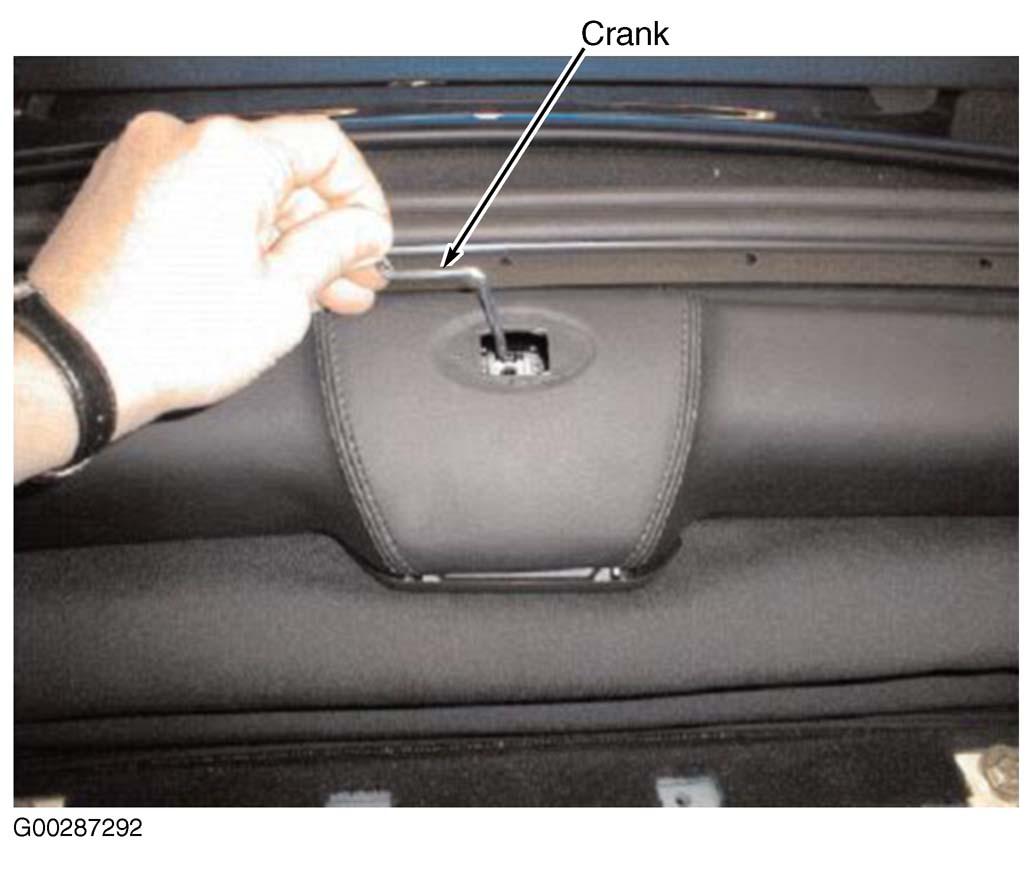

In the event of an electric/hydraulic malfunction, the top can be raised manually. To raise the top, the bow latches must be released. Remove the access cover from the inner bow cover, and using the tool from the tool kit, manually crank the bow latches open. Once the latches have been fully released, the top can be manually raised (the latches will then need to be manually latched) - a slight bleed off time is required. The convertible top cannot be manually lowered. This system does not require an initialization after the emergency procedure has been performed. See Fig 1 .
