52 15 050 Removing and installing/replacing thigh support on left or right front seat (sport/manual) (coupe)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release thigh support (1) and move forward.

Lever welt (3) of seat cover (2) out of thigh support (1).

Fig 1: Identifying Thigh Support, Welt And Seat Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Do not extend thigh support to its full extent.

Keep actuator (1) pressed in order to unlock centering element (2).

Carefully raise end stop (3) for thigh support with a screwdriver and at same time pull thigh support forwards out of guide rails.

Fig 2: Identifying Actuator, Centering Element And End Stop

Courtesy of BMW OF NORTH AMERICA, INC.

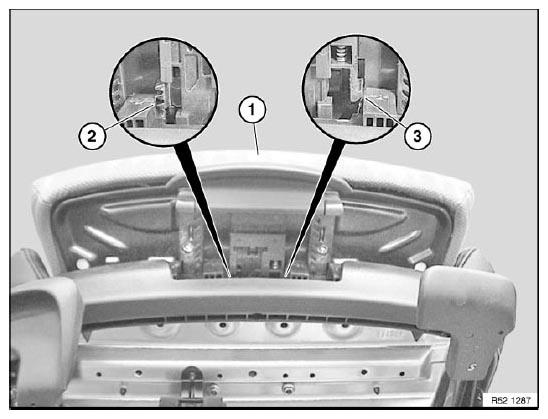

View of thigh support mechanism:

End stop for thigh support
Locking mechanism for thigh support

Fig 3: Identifying End Stop And Thigh Support locking Mechanism
Courtesy of BMW OF NORTH AMERICA, INC.

View of seat frame mechanism:
Guide rail on seat with depth arrester
Guide rail on seat with end stop

Fig 4: Identifying Depth Arrester And End Stop Guide Rails
Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

NOTE: Check guide rails (2) and adjustment mechanism (3) for damage.

Fig 5: Identifying Plug Connection, Guide Rails And Adjustment Mechanism

Courtesy of BMW OF NORTH AMERICA, INC.
