Procedure for installing pyrotechnics

Bringing head restraint together - version without button (multifunction seat):

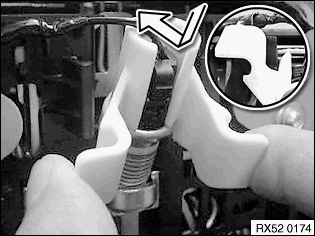

Pull apart spring catches and push together head restraint.

Maintain position.

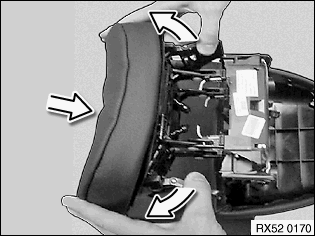

Fig 1: Bringing Head Restraint Together - Version Without Button (Multifunction Seat)

Courtesy of BMW OF NORTH AMERICA, INC.

Bringing head restraint together - version with button (basic version):

Press button (1) and push head restraint together.

Maintain position.

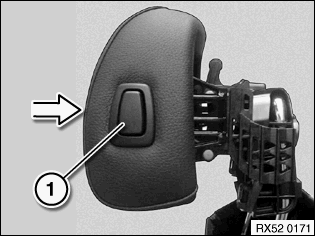

Fig 2: Bringing Head Restraint Together - Version With Button (Basic Version)

Courtesy of BMW OF NORTH AMERICA, INC.

Locking release plate:

Hold pushed-together head restraint in position and push release plate (1) upwards up to limit position.

Release plate (1) must audibly snap into place.

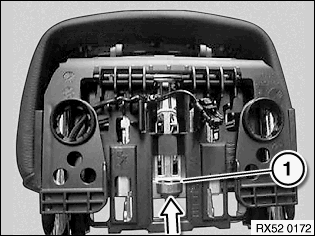

Fig 3: Locking Release Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Checking head restraint lock:

Check end position of release plate (1).

All four springs must be engaged (snapped into place).

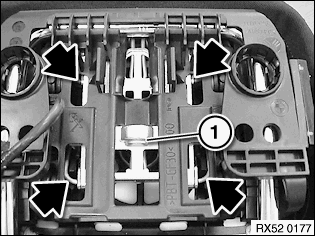

Fig 4: Checking Head Restraint Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing pyrotechnics:

Connect connector (1) to new pyroactivator (2) and LOCK .

Clip pyroactivator (2) into new mount (3).

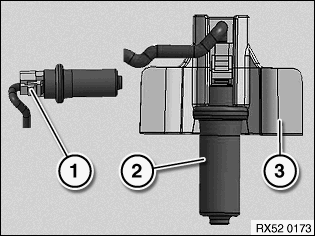

Fig 5: Replacing Pyrotechnics

Courtesy of BMW OF NORTH AMERICA, INC.

Installing pyrotechnics:

Press together mounting for pyrotechnics at tabs.

Insert mounting for pyrotechnics into release plate and tilt in upward direction.

Mounting for pyrotechnics must audibly snap into place.

Fig 6: Installing Pyrotechnics

Courtesy of BMW OF NORTH AMERICA, INC.

Laying wiring harness:

Secure wiring harness in support section with strain relief.

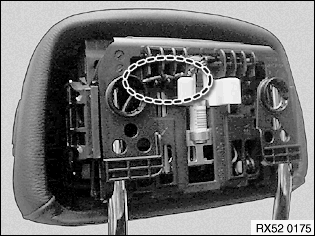

Fig 7: Laying Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

Mounting cover:

Clip cover onto support section.

Cover must audibly snap into place.

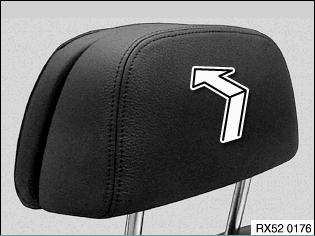

Fig 8: Mounting Cover
