51 24 100 Removing and installing/replacing rear lid lock (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear lid

Left side:

Disconnect plug connection (1).

Disconnect plug connection (2) on rear lid lock (4).

Release screws (3).

Tightening torque: 10 Nm

Fig 1: Identifying Plug Connection And Rear Lid Lock (Left Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Right side:

Disconnect plug connection (1) on rear lid lock (3).

Disconnect plug connections (2).

Release screws (4) and fold rear lid lock down (3) slightly.

Tightening torque: 10 Nm

Fig 2: Identifying Plug Connection And Rear Lid Lock (Right Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip holder (1) with screwdriver (2).

Unhook Bowden cable (4) from lever (3).

Remove rear lid lock (5).

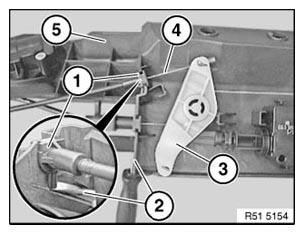

Fig 3: Unhooking Bowden Cable From Lever

Courtesy of BMW OF NORTH AMERICA, INC.
