51 13 316 Removing and installing or replacing trim strip on roof gutter at left or right (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Detach mucket (1) in area of trim strip (3).

Pull seal (2) out of trim strip (3).

Release screws (4).

Tightening torque: 1, 8 Nm.

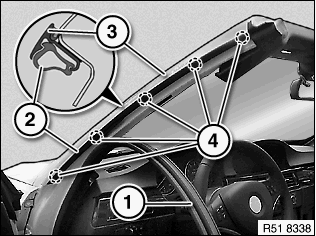

Fig 1: Identifying Mucket, Seal, Trim Strip, And Screws

G00524390

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully feed trim strip (1) out of mucket (2) and remove.

Fig 2: Identifying Feed Trim Strip And Mucket

G06176597

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing tape on trim strip (1) and trim strip (1) must not be damaged.

Contact surfaces of trim strip (1) must be clean.

Installation sequence:

Feed trim strip (1) into mucket in area (A).
Secure trim strip (1) with screws loose.
Insert rubber seal (2).
Screw down trim strip (1).

Fig 3: Identifying Area For Feeding Trim Strip Into Mucket

G06176598

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

To facilitate installation, moisten seal (3) with water.

Feed seal (3) in, first over edge (A), then over edge (B) of trim strip (1).

NOTE: Always make sure seal (3) is correctly fitted, in particular in the area of the trim strip screw-fastening points (2).

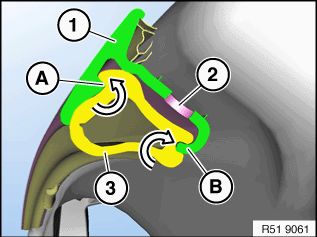

Fig 4: Identifying Trim Strip, Seal, And Screw Fastening Points

G00524391

Courtesy of BMW OF NORTH AMERICA, INC.
