51 43 034 Removing and installing/replacing rear left or right lower side trim section (convertible): Replacement

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Release retaining rings (1) and remove sound insulation (2).
If necessary, remove MODULE FOR PASSENGER COMPARTMENT PROTECTION (3).
Remove SPEAKERS (4).
If necessary, remove LED .
Remove TOP SECTION ON ARMREST

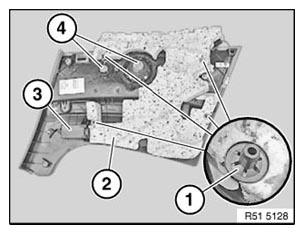

Fig 1: Identifying Retaining Rings And Sound Insulation
Courtesy of BMW OF NORTH AMERICA, INC.
