51 43 012 Removing and installing/replacing rear left or right upper side trim section (convertible): Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, open retractable hardtop.

Open lid for retractable hardtop.

Release clips (1).

Lever out protective cap (2) and release screw underneath.

Installation:

If necessary, replace defective clip (1) and protective cap (2).

Fig 1: Identifying Defective Clip And Protective Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully release upper side trim section (1) at retainers (2) and clip (3) in upward direction.

Disconnect plug connection on aerial amplifier and remove upper side trim section (1).

Installation:

If necessary, replace faulty retainers (2).

Spray area of retainers (2) with cavity sealant.

If necessary, replace faulty clips (3) and associated Hutfix in body.

Upper side trim section (1) must be correctly fed into guides (4).

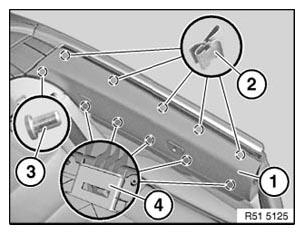

Fig 2: Identifying Upper Side Trim Section, Retainers And Clip

Courtesy of BMW OF NORTH AMERICA, INC.
