51 46 050 Removing and installing/replacing top trim on rear apron (convertible)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove trim for luggage compartment side member on left/right

Release clips (1).

Feed out panel (2) in direction of arrow.

Installation:

If necessary, replace faulty clips (1).

Fig 1: Identifying Feed Out Panel And Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1).

Release impact plates (2) with special tool 51 2 040 .

Feed out trim (4).

Installation:

If necessary, replace faulty clips (1).

Make sure mucket (3) is correctly seated on trim (4).

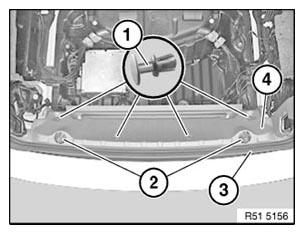

Fig 2: Identifying Impact Plates, Mucket And Clips

Courtesy of BMW OF NORTH AMERICA, INC.
