51 46 026 Removing and installing or replacing front air outlet trim grille (convertible): Notes

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM COVER ON REAR LEFT/RIGHT ROLLOVER PROTECTION SYSTEM .
Remove UPPER SECTION OF SIDE TRIM PANEL, LEFT/RIGHT .
Tilt backrest forwards.
Open lid for retractable hardtop, fold in retractable hardtop if necessary

Lift trim cover (1) out of retainers (2) with special tool 00 9 323 (scraper) and feed out towards rear.

Installation:

Catches (2) on trim (1) must not be damaged.

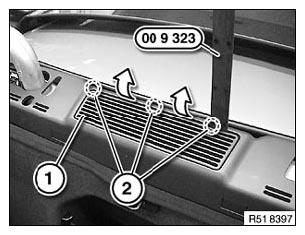

Fig 1: Lifting Trim Cover Of Retainers With Special Tool 00 9 323

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip trim cover (1) on left/right forwards.

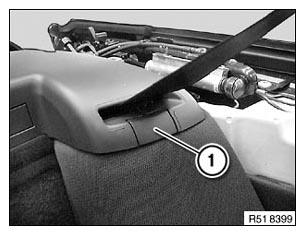

Fig 2: Identifying Trim Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off cover (1) downwards.

Lever out covers (2) and release screws underneath.

Tightening torque: 8 Nm

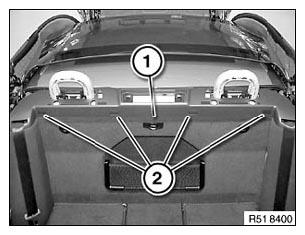

Fig 3: Identifying Lever Out Covers

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (1).

Release screws (2).

Tightening torque: 8 Nm

Remove seat belts (3) from trim grille (4).

Detach trim grille (4) by lifting upwards.

Installation:

Remove all screws/clips on trim grille (4).

Align trim grille (4) with rollover protection system and secure screws/clips.

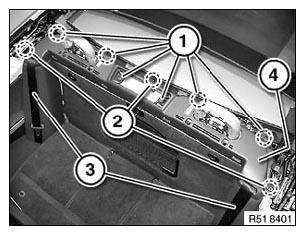

Fig 4: Identifying Seat Belts, Trim Grille With Clips And Screws
