51 16 342 Removing and installing/replacing lock cylinder for passenger airbag deactivation

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Individual parts, switch for passenger airbag deactivation

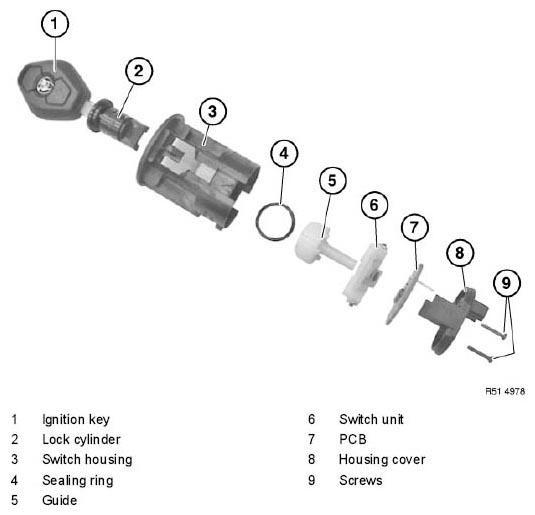

Fig 1: Passenger Airbag Deactivation Switch Components And Assembly Order
G04752574Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

Release screws (1).

Remove housing cover (2) and PCB (3) underneath.

Fig 2: Screws, Housing Cover And PCB
G04749693Courtesy of BMW OF NORTH AMERICA, INC.

Remove switch unit (1) in upward direction.

Installation:

Switch unit (1) can only be installed in one position.

PCB (4) can be inserted turned through 180°.

Position of magnet sensor (3) of PCB (4) must match up with permanent magnet (2) of switch unit (1).

Fig 3: Switch Unit, Permanent Magnet, Magnet Sensor And PCB
G04749694Courtesy of BMW OF NORTH AMERICA, INC.

Remove guide (1) in upward direction.

Installation:

Guide (1) can only be installed in one position.

Fit seal (2) on guide (1) and insert in switch housing.

Fig 4: Guide And Seal
G04749695Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: Ignition key must be inserted in lock cylinder, otherwise this will be destroyed when removed.

Insert ignition key in lock cylinder (2).

Carefully release catches (1) in outward direction and press out lock cylinder (2) with ignition key.

Installation:

Lock cylinder (2) can only be inserted in "ON" or "OFF" switch position.

Lock cylinder

Fig 5: Lock Cylinder, Catches And Removal Direction
G04749696Courtesy of BMW OF NORTH AMERICA, INC.
