51 16 156 Replacing ashtray insert

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Open ashtray cover (1) and pull ashtray lid (2) out of locator.

Installation:

Press ashtray insert (2) until it snaps into the locator.

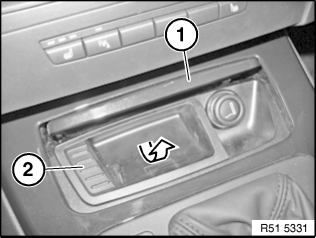

Fig 1: Ashtray Cover, Lid And Removal Direction
G00425610Courtesy of BMW OF NORTH AMERICA, INC.
