51 16 080 Removing and installing or replacing sun visor and left or right counter-support (convertible)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

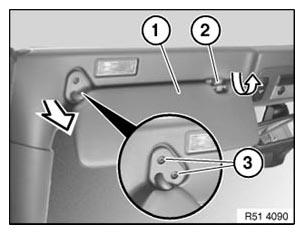

Lever sun visor (1) out of counter-support (2) in direction of arrow.
Release screws (3) and feed out sun visor towards bottom.
If necessary, disconnect plug connection and remove sun visor (1).
Installation:
Perform function check on lighting.
Lever out side strips (1).
Release screws (2) and remove counter-support (3).
Installation:
Strips (1) must not be damaged.
