51 71... Removing and installing/replacing rear middle tension strut (up to 03/2007)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle.
Driving without the tension strut is not permitted!
Driving without the tension strut is not permitted!

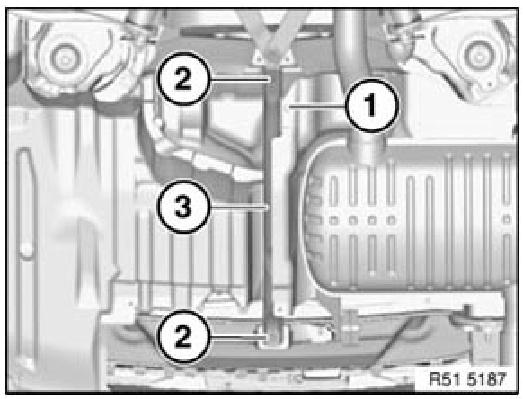

Release screws (1, 2).
Remove tension strut (3).
Installation:
Tightening torque: 19 Nm
