51 71 482 Removing and installing/replacing left or right trailing link (on rear axle) (up to 03/2007)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle.
Driving without the tension strut is not permitted!

Release screws (1, 2, 3).

Remove tension strut (4).

Installation:

Replace screw (2).

Make sure screws are installed in correct positions.

Screw (1) M12x35
Tightening torque: see 25AZ in Fig 1.
Screw (2) M12x50
Tightening torque: see 26AZ in Fig 1.
Screw (3) M10x25
Tightening torque: see 20AZ in Fig 1.

Fig 1: Identifying Tension Strut And Screws
Courtesy of BMW OF NORTH AMERICA, INC.

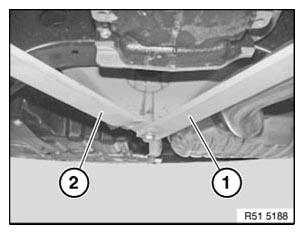

IMPORTANT: Left tensions strut (1) must be installed under right tension strut (2).

Fig 2: Identifying Left And Right Tension Strut Release Clips (1). Release Screws (2). Remove Underbody Cover (3).

Courtesy of BMW OF NORTH AMERICA, INC.
