51 32 154 Adjusting left or right front door window glass (convertible)

Prerequisite:

• Vehicle must be standing on its wheels on a level floor
• Front door correctly ADJUSTED to fit
• If necessary, close retractable hardtop

If necessary, incoming check:

The following incoming check must be carried out prior to every adjustment operation:

• Denormalize POWER WINDOW
• Measure retraction depths with 2 special tools 51 3 080
• Insert adapter 51 0 341 (blue) in rotary striker and close rotary striker
• Measure pretension with special tool 51 0 342 (steel tape measure)
• Initialize power windows

Necessary preliminary tasks:

• Denormalize POWER WINDOW
• Remove OUTER WINDOW CAVITY COVER STRIP  (not for checking pretension)

Ideal adjustment, longitudinal direction:

Open door window.

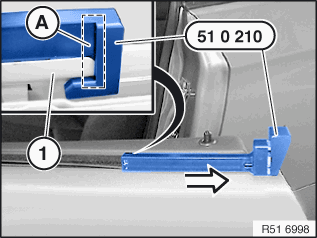

Fit special tool 51 0 210 (blue) in front door and press back as far as it will go. Tool must rest on the door and sit without any play in the guide (1) in area (A).

Fig 1: Fitting Special Tool 51 0 210

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment, retraction depth:

• Open door window
• Attach special tool 51 3 080 to door window glass
• Close front door and door window
• Measure retraction depth

Fig 2: Identifying Special Tool (51 3 080)

Courtesy of BMW OF NORTH AMERICA, INC.

Measure retraction depth (C) in areas (A and B).

Retraction depth (C):

New sealing system can also be installed as replacement in older vehicles. Visually check which build version is current.

Fig 3: Identifying Retraction Depth Of Door Window

Courtesy of BMW OF NORTH AMERICA, INC.

1. A = 4 ± 0.5 mm

   Gap between measuring point and triangular mirror section = 30 mm

2. B = 7.5 ± 0.5 mm

   Gap between measuring point and window edge = 90 mm

Fig 4: Identifying Front And Rear Sealing (Previous Sealing System)

Courtesy of BMW OF NORTH AMERICA, INC.

1. A = 4 ± 0.5 mm

   Gap between measuring point and triangular mirror section = 30 mm

2. B = 9 ± 0.5 mm

   Gap between measuring point and window edge = 90 mm

Fig 5: Identifying Front And Rear Sealing (New Sealing System)

Courtesy of BMW OF NORTH AMERICA, INC.

Mask off special tool 51 3 310 in area A with webbed tape. Place suitable film between tool and glass (risk of damage to paint finish and glass).

Fig 6: Identifying Fabric Adhesive Tape On Special Tool (51 3 310)

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting longitudinal direction/retraction depth:

Slacken screws (1) with special tool 51 3 310 until door window glass can be moved.

Fig 7: Identifying Screws And Special Tool 51 3 310

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Identifying Window Glass Support Area

Courtesy of BMW OF NORTH AMERICA, INC.

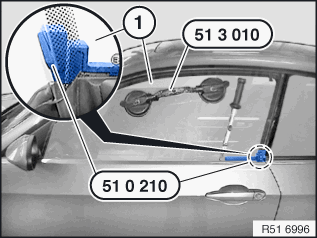

Attach special tool 51 3 010 to door window glass (1).

Slide door window glass (1) 51 0 210 up against special tool.

Adjust retraction depth of door window (1) in area of A-pillar and B-pillar.

Fig 9: Identifying Window Glass And Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

The specified torque moment (MDE) (see 1AZ in 51 32 FRONT DOOR WINDOWS ) is reduced when using special tool 51 3 310 . Depending on the torque wrench used, this must be calculated in accordance with the adjacent overview:

MDE = Torque to be set

MDV = Prescribed torque (without special tool)

lj = Standard adjustment length with adjusting tool

l1 = Effective length of torque wrench

l2 = Inside dimension of adjusting tool

lw = Inside dimension of insertion tool (here lw = 145 mm)

Fig 10: Identifying MDE Adjacent Equation

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) with special tool 51 3 310 .

Tightening torque: see 1AZ in 51 32 FRONT DOOR WINDOWS .

Remove special tool 51 3 010 from door window glass.

Open door window and remove special tool 51 0 210.

Fig 11: Tightening Down Screws

Courtesy of BMW OF NORTH AMERICA, INC.

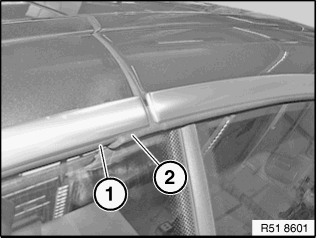

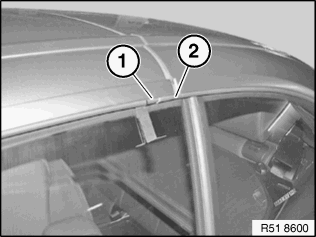

Top edge of door window glass (1) must be adjusted parallel to contour (2) of water drain.

Seals on A-pillar and on retractable hardtop must not be damaged.

When the door window glass is retracted into the seals, the seals must not distorted.

Fig 12: Locating Top Edge Of Door Window And Contour Of Water Drain

Courtesy of BMW OF NORTH AMERICA, INC.

Ideal adjustment, pre-tension:

Insert special tool 51 0 341 in rotary striker of door lock and close rotary striker manually. Carefully close door.

Fig 13: Identifying Special Tool 51 0 341 In Rotary Striker Of Door Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Slide special tool 51 0 342 at distance (B) to door window glass side edge into seal (1) and measure dimension (A) to outside edge of door window glass (2).

Dimension (A) with window cavity cover strip:

A = 51 ±1 mm

Dimension (A) without window cavity cover strip:

A = 52 ±1 mm

B = 10 mm

Fig 14: Identifying Dimension (A) On Outside Edge Of Door Window Glass

Courtesy of BMW OF NORTH AMERICA, INC.

Adjusting pre-tension:

Slacken nut (3) with reversible ratchet (2) of special tool 51 3 300 (consisting of 51 3 301, 51 3 303, and 51 3 304).

Turn knob (1) on special tool 51 3 300 to turn stud (4) and thereby alter the pre-tension.

Tighten nut (3).

Tightening torque: 10 Nm.

Check adjustment, repeat procedure if necessary.

Fig 15: Reset Distance By Turning Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Checking run-in of door window glass:

Door window glass must strike the inside of the seal.

Check adjustment of REAR SIDE WINDOW , adjusting if necessary.
