51 33... Slightly loosen power window regulator to remove door lock in left or right front door: Notes

Necessary preliminary tasks:

• Partly remove SOUND INSULATION FROM FRONT DOOR .

Fig 1: Identifying Sound Insulation

Courtesy of BMW OF NORTH AMERICA, INC.

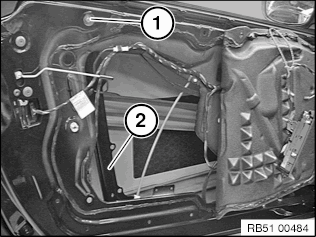

Mark measuring point on window lift rail (1) and inner door panel (2).

Fig 2: Identifying Measuring Points On Window Lift Rail And Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Determine distance between window lift rail (1) and inner door panel (2) and note down.

Fig 3: Measuring Distance Between Window Lift Rail And Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken off nut (1) on window lift rail (2).

Installation note:

Nut (1) must again be correctly covered with adhesive film.

Tightening torque: 51 33 1AZ .

Fig 4: Identifying Window Lift Rail And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Remove dummy plug. Loosen nut (3) with special tool 51 3 300 .

Tightening torque: 51 33 1AZ .

Installation note:

Reset the distance you noted down by turning knob (1) on special tool 51 3 300 .

Fig 5: Reset Distance By Turning Knob

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check distance between window lift rail (1) and inner door panel (2), repeat previous setting procedure if necessary.

Fig 6: Measuring Distance Between Window Lift Rail And Inner Door Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Detach rear part of window regulator at bottom and pull in direction of arrow.

Fig 7: Pulling In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 8: Identifying Door Lock Behind Window Lift Rail

Courtesy of BMW OF NORTH AMERICA, INC.
