51 47 151 Removing and installing/replacing left luggage compartment wheel arch trim: Notes
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove LUGGAGE COMPARTMENT TRIM ON SIDE PANEL
- Remove LOCATING BRACKET FOR FOLDING ROOF
- If necessary, remove STORAGE TRAY

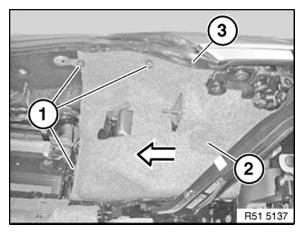

Release clips (1).
Lever out panel (2) on mucket (3).
NOTE:
Do not detach mucket (3) from body.
Feed out panel (2) in direction of arrow.
