41 35 101 Rear Left Side Panel Replacement (Coupe)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

STRIP DOWN vehicle.

Observe procedure for REPAIR STAGE 2 !

Following new body parts are required:

Side panel, rear

Fig 1: Rear Side Panel
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer metal sheet only.

Measurement a = approx. 90 mm from roof edge

Measurement b = approx. 150 mm from edge of roof frame

Measurement c = in center point of 20 mm dia. hole

Open weld joints in areas (1).

Installation information:

Apply window glass adhesive to Cavity Acoustic Baffles (2).
Weld in Reinforcing Panels at all severance cuts.

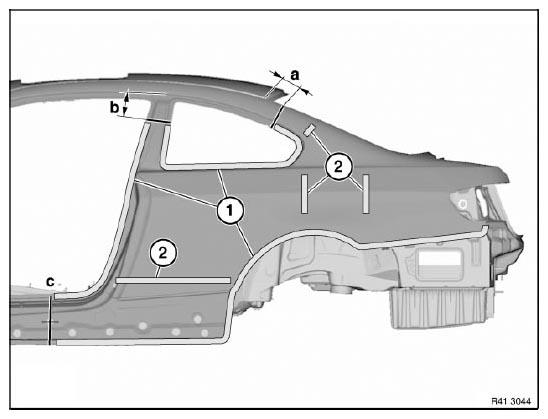

Fig 2: Weld Joint Areas And Cavity Acoustic Baffles
