51 71 360 Seal For Tailgate Removal And Installation Or Replacement (Coupe)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
To prevent water ingress, removed sealing may not be reused.
Necessary preliminary tasks:
- Remove OUTER LEFT AND RIGHT WEATHERSTRIP
- Remove left and right LUGGAGE COMPARTMENT WHEEL ARCH PANELS
The right side is removed in the same way as the left side.

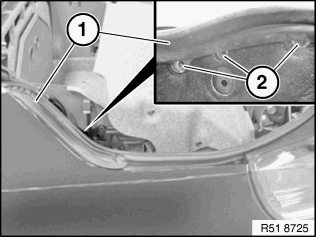

Unfasten screws (2).
Feed out front seal (1) and remove by pulling backwards.
Reposition convertible top module if necessary to completely remove seal (1).
Installation note:
- Observe fitting of seals
Replacement

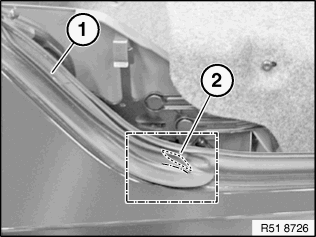

To avoid water entering the vehicle interior, the new seal (1) must be modified as follows:
Remove marked section of lip (2).
(Larger frame section, see next step)

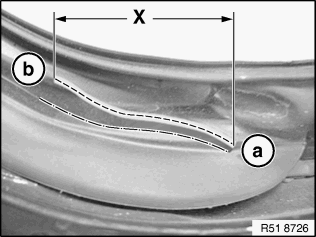

Dimension "X" = 40 mm
Cut section in direction "a" -> "b" with sharp knife.
WARNING:
The seal itself must not be damaged.
Therefore make sure you leave a bridge between the cut at the lip (dashed line) and the transition of the lip to the seal (dot-dash line).
