Longitudinal And Lateral Adjustment

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Open convertible top until rear module (1) is opened approx. 10 cm.

Stop opening operation in the position shown.

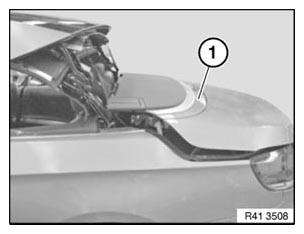

Fig 1: Rear Module

Courtesy of BMW OF NORTH AMERICA, INC.

Close rear end module (1) again.

Stop closing operation when the coupling fastener has locked the rear end module (1).

The correct position is reached when the rear end module (1) is flush with the side panel in area (2). If necessary, repeat procedure.

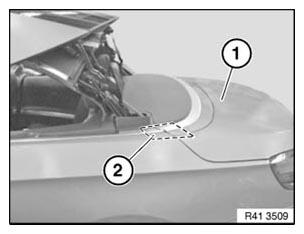

Fig 2: Rear End Module And Side Panel

Courtesy of BMW OF NORTH AMERICA, INC.

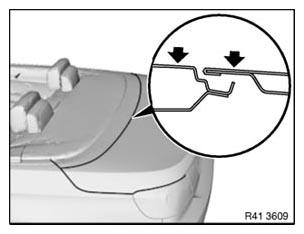

NOTE: In event of excessive height difference between convertible top compartment lid and rear lid in area shown:
Tilt convertible top compartment lid in rear area downwards.

To do so, remove spacer plates from middle and rear screw fastening points, see next picture.

Fig 3: Spacer Plates

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: For purposes of clarity, picture shows and description refers to the opened convertible top compartment lid.
However, adjustment in the longitudinal direction and to the side is carried out with the convertible top compartment lid closed from the luggage compartment.

Open rear lid with ignition key.

Slacken nuts (2).

Adjust convertible top compartment lid (3) longitudinally and laterally.

Tighten down nuts (2).

Tightening torque: 20 Nm

Fig 4: Convertible Top Compartment Lid And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.
