Removal Of Luggage Compartment Floor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Open weld joints in area (1).

Fig 1: Welding Areas

G06854886

Courtesy of BMW OF NORTH AMERICA, INC.

With removed tail panel:

Mark severance cut (1) and disconnect tensioning strap (2).

Installation:

Mark severance cut on new part C-pillar reinforcement acc. to vehicle + 25 mm material extra and disconnect.

Bond tensioning strap in area of the overlap with 3 blind rivets N3 and rivet.

Fig 2: Severance Cut And Tensioning Strap

G06854887

Courtesy of BMW OF NORTH AMERICA, INC.

For removed side wall:

Release welded connection in area (1) and remove tensioning strap (2).

Installation:

Bond tensioning strap in area (1) with 3 blind rivets N3 and rivet.

Fig 3: Welded Connection Area And Tensioning Strap

G06854888

Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

Mark severance cut (2) next to reinforcement (3) and disconnect.

Fig 4: Welding Areas, Severance Cut And Reinforcement

G06854889

Courtesy of BMW OF NORTH AMERICA, INC.

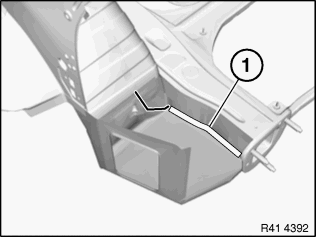

Open weld joints in area (1).

Remove the trunk floor.

NOTE: Tail panel and side wall hidden for better overview.

Fig 5: Welded Connections Area

G00528040

Courtesy of BMW OF NORTH AMERICA, INC.
