41 12 651 Left Luggage Compartment Floor Section Replacement (Tail Panel Or Side Wall Removed) (Convertible): Notes
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Read general service information under Body, General .
Strip down vehicle.
NOTE:
Observe new procedure for bonding and riveting (repair stage 2 ).
Following new body parts are required:

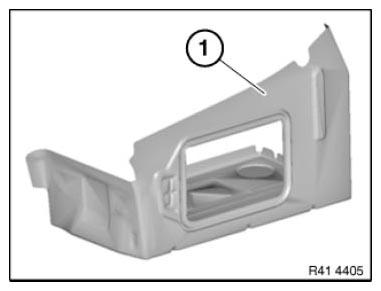

- (1) Luggage compartment floor, left section
Following consumables are required:
CONSUMABLES REQUIRED - LUGGAGE COMPARTMENT FLOOR (LEFT SECTION)
| Material | Quantity |
|---|---|
| Adhesive K5a | 1 |
| Blind rivets N3 | 13 |
| EMC screws | 6 |
| Cleaning agent R1 | 1 |
| Sealant D1 |
