New Part Preparation

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Mark severance cut on new part luggage compartment floor acc. to vehicle + 15 mm material extra and disconnect.

Adjust new part in combination with tail panel and side wall to fit and secure.

Set 5 4.2 mm dia. bore holes for blind rivets N3 in area (1).

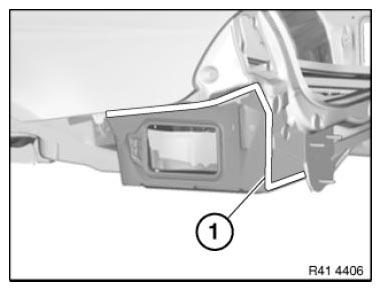

Fig 1: Rivet Areas

Courtesy of BMW OF NORTH AMERICA, INC.

Set 8 4.2 mm dia. bore holes for blind rivets N3 in area (1).

Remove new part again and deburr bore holes.

On vehicle clean the connection face for bonding with cavity sealing wax remover.

Fig 2: Blind Rivets Area

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not grind new part and body in area of bonding surfaces.
