41 12 560 Luggage Compartment Floor Replacement (Complete With Inner Wheel Arch Section, Tail Panel Removed)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of Body, general   .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Spot-weld bonding is used on this vehicle. Observe specific Procedure   .

Use only approved Spot-Welding Apparatus   for repairs!

Place vehicle on straightening bench.

Following new body parts are required:

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (1).

Take off holder (2).

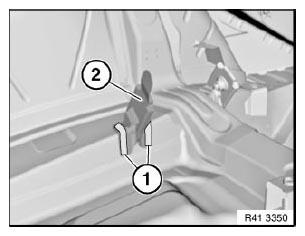

Fig 2: Identifying Weld Joint Areas And Holder
G06179989Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Mark severance cut in accordance with measurement a and cut.

Measurement a=40 mm behind support, frame side member (1).

Installation:

Weld in reinforcement plates  at severance cuts.

Fig 3: Identifying Frame Side Member
G04726850Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Mark severance cut (1) and cut.

Open weld joints in areas (2).

Installation:

Weld new components in areas (3) additionally.

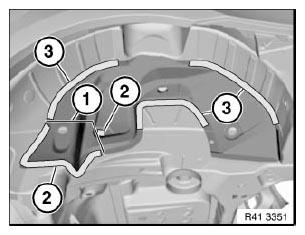

Fig 4: Identifying Cut Mark And Weld Joint Areas
G06179991Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Mark severance cut (1) in accordance with measurement a and cut rear axle carrier.

IMPORTANT: Cut outer metal sheet only.

Measurement a=70 mm from rear axle bushing mounting.

Open weld joints in area (2).

Installation:

Weld in reinforcement plates  at severance cuts.

Fig 5: Identifying Weld Joint Areas
G04726852Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (1).

Fig 6: Identifying Weld Joint Areas
G04726853Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (1).

Installation:

Weld new components in areas (2) additionally.

Fig 7: Identifying Weld Joint Areas
G06179994Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (1).

Open adhesive joints in area (2).

Remove rollover protection mounting (3).

Installation:

Plug/spot-weld in area (2) of wheel arch side.

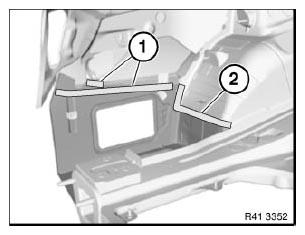

Fig 8: Identifying Rollover Protection Mounting And Adhesive Joint Area
G06179995Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (1) and (2).

Installation:

Set 5 additional welding spots in area (3).

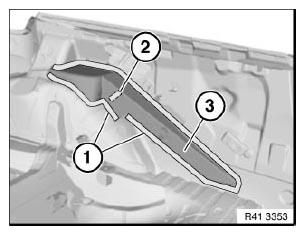

Fig 9: Identifying Weld Joint Areas
G06179996Courtesy of BMW OF NORTH AMERICA, INC.

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in area (1).

Installation:

Weld new component in area (2) additionally.

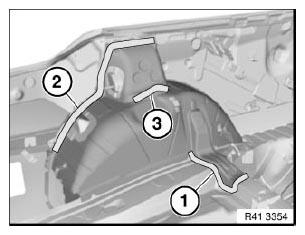

Fig 10: Identifying Weld Joint Areas
G06179997Courtesy of BMW OF NORTH AMERICA, INC.

Open weld joints in area (1).

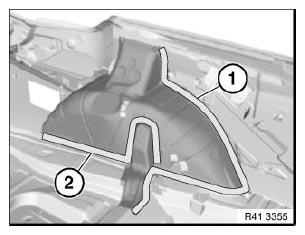

Fig 11: Identifying Weld Joint Areas
G04726858Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Carry over the work step shown symmetrically to the other side of the vehicle.

Mark severance cuts (1) in accordance with measurement and cut.

IMPORTANT: Cut outer metal sheet only.

Measurement a=170 mm

Measurement b = 110 mm

Installation:

The parts separated by cutting are still needed.

Weld in reinforcement plates  at severance cuts.

Fig 12: Identifying Cut Mark
G04726859Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (2).

Installation:

The parts separated by cutting are still needed.

Fig 13: Identifying Weld Joint Areas
G04726860Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Open weld joints in areas (1).

Mark severance cut (2) in accordance with vehicle and cut.

IMPORTANT: Cut outer metal sheet only.
Fig 14: Identifying Weld Joint Areas And Cut Mark
G04726861Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Carry over the work step shown symmetrically to the other side of the vehicle.

Open weld joints in areas (1).

Fig 15: Identifying Weld Joint Areas
G04726862Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Open weld joints in areas (1).

Installation:

The parts (2) separated by cutting are still needed.

Fig 16: Identifying Weld Joint Areas
G04726863Courtesy of BMW OF NORTH AMERICA, INC.

Preparation of new part:

Open weld joints in area (1).

Mark severance cut (2) in accordance with vehicle and cut.

Fig 17: Identifying Cut Mark And Weld Joint Areas
G04726864Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Adjust new parts to fit with straightening attachment or universal mount.

Before welding in, also adjust tail panel, rear lid and rear lights to fit.

Weld new components in following order:
