41 32 000 Left Cowl Or Right Cowl Replacement (Coupe)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Read contents of BODY, GENERAL .

Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.

Use only approved Spot-Welding Apparatus for repairs.

Following new body parts are required:

A-pillar, outer

Fig 1: Outer A-Pillar
Courtesy of BMW OF NORTH AMERICA, INC.

Mark severance cuts in accordance with specified measurements and cut.

IMPORTANT: Cut outer plate only for following severance cuts.

Measurement a = approx. 100 mm from roof edge.

Measurement b = approx. 550 mm below severance cut a.

Open weld joints in areas (1).

Installation:

Weld in Reinforcing Panels at all severance cuts.

Apply window glass adhesive to Cavity Acoustic Baffle (2).

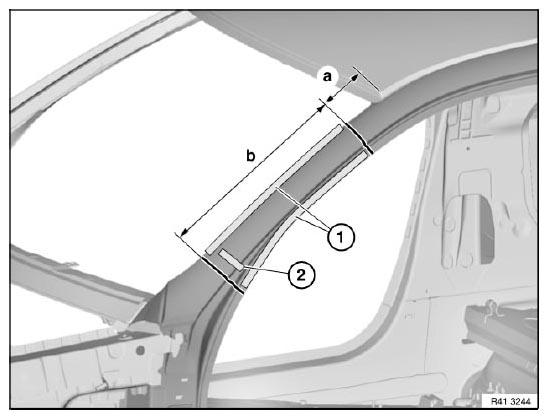

Fig 2: Measurement A (Approx. 100 mm) From Roof Edge

Courtesy of BMW OF NORTH AMERICA, INC.
