37 14 512 Replacing rear ride-height sensor

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with Notes On Protection Against Electrostatic Damage (ESD Protection). .

Release nut (1) and disconnect jointed rod (2).

Installation:

Replace self-locking nut.

For tightening torque refer to 37 14 3AZ in 37 14 ELECTRIC COMPONENTS .

Disconnect plug connection (3).

Release bolt (4) and remove ride-height sensor with bracket.

Installation:

Align bracket to corresponding bore hole (arrow) in rear axle carrier.

For tightening torque refer to 37 14 2AZ in 37 14 ELECTRIC COMPONENTS .

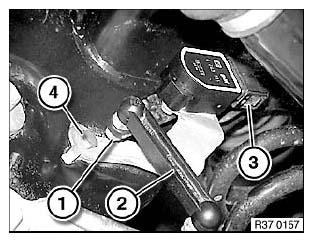

Fig 1: Identifying Nut, Jointed Rod, Plug Connection And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Release screws (1) and remove ride-height sensor from bracket (2).

Installation:

Sensor lever (3) must point from ride-height sensor in direction of screw fastening point (arrow) of bracket.

For tightening torque refer to 37 14 1AZ in 37 14 ELECTRIC COMPONENTS .

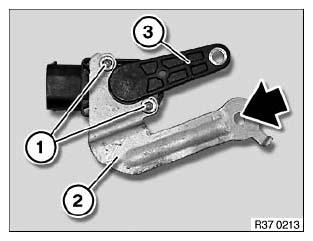

Fig 2: Identifying Ride-Height Sensor Bracket And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
