37 14 511 Replacing ride height sensor at front (AWD)

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2008 BMW 335xi, 2008 BMW 335i, 2008 BMW 328xi, 2008 BMW 328i, and 2008 BMW 323i. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on NOTES ON PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Release nut (1) and disconnect jointed rod (2).

Tightening torque: see 3AZ in 37 14 ELECTRIC COMPONENTS .

Installation note:

Replace nut.

Release screws (3), remove ride height sensor and disconnect plug connection (4).

Tightening torque: see 1AZ in 37 14 ELECTRIC COMPONENTS .

Installation note:

Sensor lever (2) must point from ride height sensor to left front wheel.

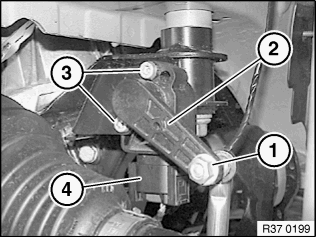

Fig 1: Identifying Jointed Rod, Sensor Lever, Nut, Screws, And Connector

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Check HEADLIGHT ADJUSTMENT , correct if necessary
