Removal - upper bead

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Unseat bead if possible with unseating roller (1) from rim flange.

Note position of sensor - do not unseat in this area!

If using a pressing-off tool (2), unseat 3 to 4 times around circumference max. 1 cm from rim flange.

Observe pressing-off/unseating limitation.

Start at 90° or 270°.

Do not position at 0° or 180° refer to Fig 3.

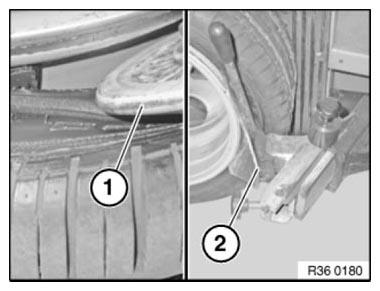

Fig 1: Removing Tyre Upper Bead Using Pressing-Off Tool Or Unseating Roller

Courtesy of BMW OF NORTH AMERICA, INC.

Apply sufficient antiseize compound as deeply as possible between rim and tire.

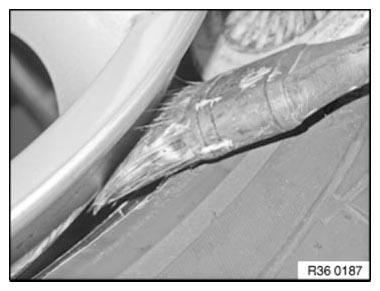

Fig 2: Applying Antiseize Compound Between Rim And Tyre

Courtesy of BMW OF NORTH AMERICA, INC.

Position fitting head (1) in direction of rotation before valve (2).

Position holding-down element at 0° to hold tire in well.

Position tire iron (3) on fitting head.

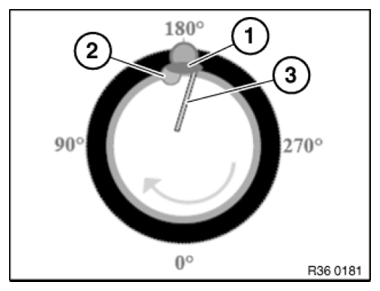

Fig 3: Positioning Fitting Head

Courtesy of BMW OF NORTH AMERICA, INC.

Lever bead with tire iron (1) over rim flange.

IMPORTANT: Avoid damaging the rim by using a suitable tire iron with protective coating.
Make sure there is sufficient lubrication between bead and rim flange; apply antiseize compound if necessary.

Allow fitting machine to rotate slowly and relieve tension on holding-down element and rollers during rotation.

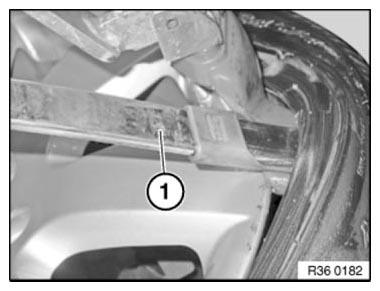

Fig 4: Levering Tyre Bead Using Tyre Iron

Courtesy of BMW OF NORTH AMERICA, INC.
