Removal - lower tire bead

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Apply sufficient antiseize compound between rim and tire.

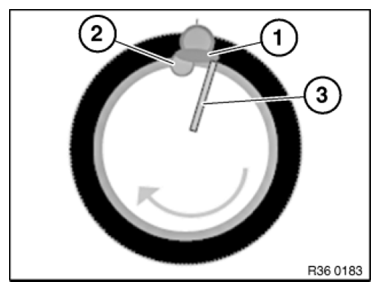

Position fitting head (1) in direction of rotation before sensor (2).

Position tire iron (3) on fitting head (1).

Tyre bead must be positioned entirely in well opposite fitting head (1).

Fig 1: Positioning Fitting Head

Courtesy of BMW OF NORTH AMERICA, INC.

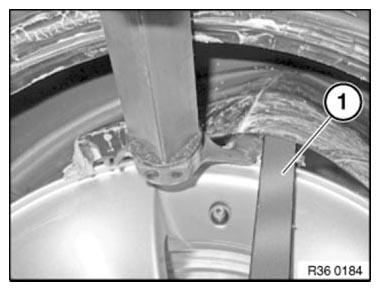

Lever bead with tire iron (1) over rim flange.

IMPORTANT: Avoid damaging the rim by using a suitable tire iron with protective coating.

Allow fitting machine to rotate slowly.

Fig 2: Levering Tyre Bead Using Tyre Iron

Courtesy of BMW OF NORTH AMERICA, INC.
