Labelling of electronic wheel modules SP303 RDC-01 and RDC-02

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

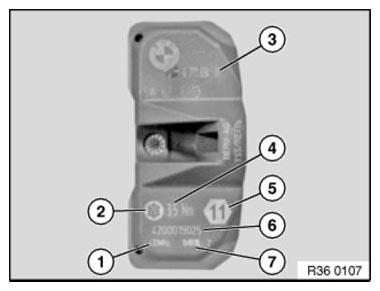

  1. Transmission frequency of electronic wheel module
  2. Large Torx socket screw
  3. BMW part number
  4. Tightening torque of Torx screw and union nut
  5. Width across flats of union nut
  6. Serial number of electronic wheel module
  7. Production date of electronic wheel module
    Fig 1: Labelling Electronic Wheel Modules (SP303 RDC-01 And RDC-02)
    G06890136Courtesy of BMW OF NORTH AMERICA, INC.
