Labelling of Gen3 electronic wheel module for RDC-LC

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
  1. Data Matrixcode
  2. BMW part number
  3. FCC ID radio authorization
  4. Electronic wheel module
  5. Transmission frequency
  6. Pressure sensor
  7. Width across flats of union nut
  8. Tightening torque
  9. Production date of electronic wheel module

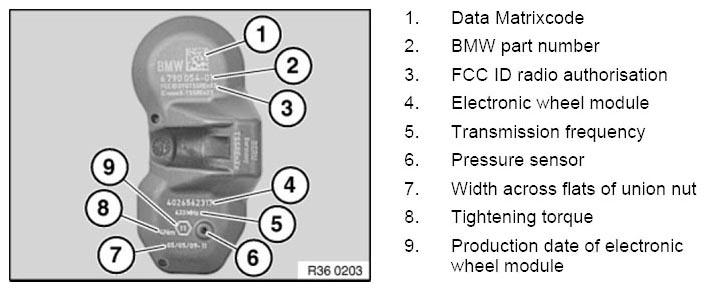

    Fig 1: Labelling Gen3 Electronic Wheel Module (RDC-LC)
    G06890137Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The following graphics show exclusively how to install and remove the SP-303 electronic wheel module. The handling instructions also apply without any differences to the Gen3 electronic wheel module!
