Removing electronic wheel module

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following illustrations only show removal and refitting of the 3rd generation wheel electronics module. The instructions also apply without alteration to the 2nd generation wheel electronics.

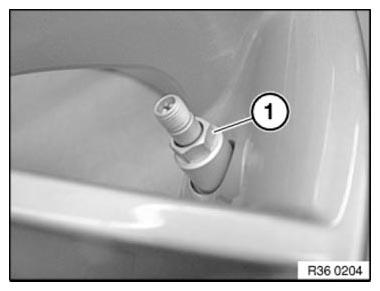

Release union nut (1).

Fig 1: Identifying Union Nut

Courtesy of BMW OF NORTH AMERICA, INC.

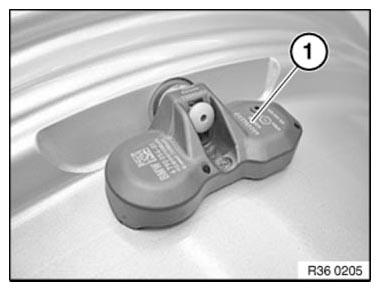

Remove wheel module and valve (1) from valve hole.

Fig 2: Identifying Wheel Module Valve

Courtesy of BMW OF NORTH AMERICA, INC.

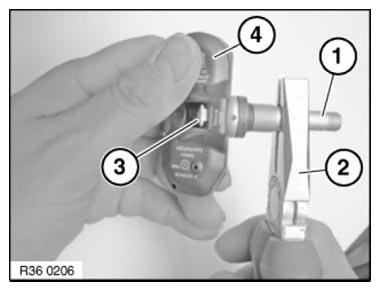

Using suitable pliers (2), unscrew valve (1) from the thread of the square-head bolt (3), while holding the wheel module (4) firm. Completely unscrew valve (1).

Remove square head screw from holder for electronic wheel module.

Installation note:

Replace valve.

Fig 3: Unscrewing Valve From Thread Of Square-Head Bolt Using Plier

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before the installation of new wheel electronics with valve, thoroughly clean the valve bore of the wheel rim!
Also make sure that the valve bore is free of burrs
