Labelling of generation 3.4/3.41 wheel electronics

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

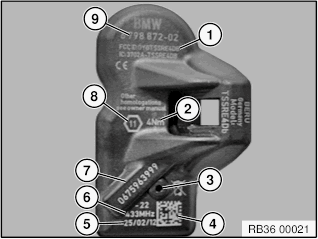

  1. FCC ID = radio authorization
  2. Tightening torque
  3. Pressure sensor
  4. Data Matrixcode
  5. Production date of wheel electronics
  6. Transmission frequency
  7. Wheel electronics ID
  8. Width across flats of union nut
  9. BMW part number
    Fig 1: Identifying Labels On Gen3.4/3.41 Wheel Electronics
    G00524256Courtesy of BMW OF NORTH AMERICA, INC.
