36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit (LOW COST)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on protection against electrostatic damage (ESD protection).
Necessary preliminary work
- Remove COVER FOR CARBON CANISTER .

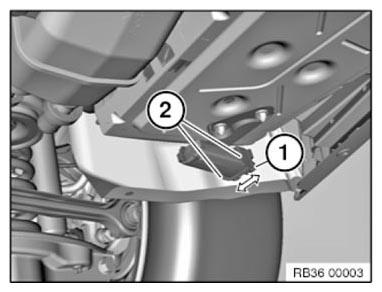

Disconnect plug connection (1).
Press retaining tabs (2) apart as indicated by arrow.
Pull out TPC control unit
Replacement
- Carry out PROGRAMMING/ENCODING
