35 31 050 Removing and installing/replacing over-center helper spring

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Pedal Trim. .

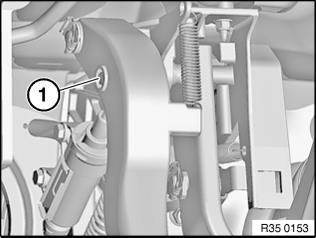

Press end of pin (1) together with offset pliers and press out pin.

Fig 1: Press End Of Pin (1) Together With Offset Pliers And Press Out Pin

Courtesy of BMW OF NORTH AMERICA, INC.

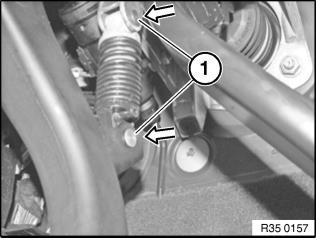

Push in pin (1) fully in direction of arrow.

Fig 2: Push In Pin (1) Fully In Direction Of Arrow

Courtesy of BMW OF NORTH AMERICA, INC.

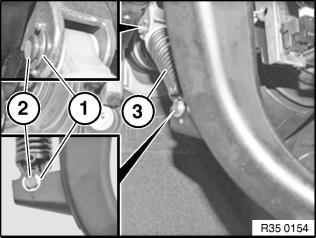

Detach retainers (1). Installation: Check retainers, replace if necessary. Retainers must lie with both legs in the groove and snap audibly into place. Slide out pin (2). Installation: Lightly grease pin. Remove over-center helper spring (3).

Fig 3: Remove Over-Centre Helper Spring (3)

Courtesy of BMW OF NORTH AMERICA, INC.

There are two versions:

(A) Over-center helper spring.
(B) Reinforced over-center helper spring.

Assembly of over-center helper spring:

Secure black holder (1) to clutch pedal.
Smaller coil spacing of spring (2) points to black holder (1).
Secure grey holder (3) to bearing block.

Lightly grease holder and spring contact surfaces.

Fig 4: Assembling Over-Center Helper Spring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation: Secure over-center helper spring first with black holder to clutch pedal. Gently press over-center helper spring together and secure with grey holder to bearing block. Connect clutch pedal to clutch master cylinder. When replacing reinforced over-center helper spring: Remove locking clamp (1).

Fig 5: Identifying Locking Clamp

Courtesy of BMW OF NORTH AMERICA, INC.
