34 21 173 Replacing rear left (or right) brake carrier
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove expander lock.
- Remove wheel hub. See 33 41 153 REPLACING WHEEL BEARING (75 MM) ON REAR AXLE SHAFT ON LEFT or 33 41 153 REPLACING WHEEL BEARING (85 MM) ON REAR AXLE SHAFT ON LEFT .

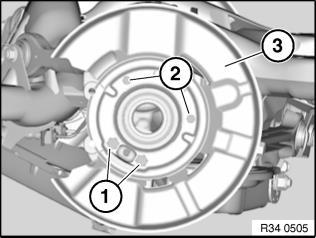

Release screws (1). Installation: Tightening torque, see 34 21 3AZ in 34 21 REAR BRAKE .
Release screws (2) and remove brake carrier (3). Installation: Tightening torque, see 34 21 3AZ in 34 21 REAR BRAKE . Release screws (1). Installation: Tightening torque, see 34 21 3AZ in 34 21 REAR BRAKE .
