34 41... Removing and installing or replacing gaiter for parking brake lever

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip gaiter with special tool Trim panel wedge 00 9 317 in set 00 9 310 ASSEMBLY WEDGES (SET IN PLASTIC CASE) .

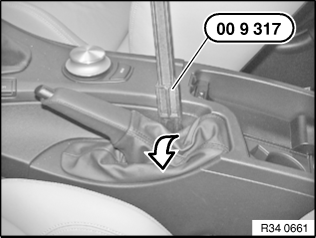

Fig 1: Special Tool (00 9 317) And Gaiter Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Pull gaiter (1) over handbrake lever.

Cut cable ties (2) and remove gaiter.

Installation:

Eye of cable tie must face downward

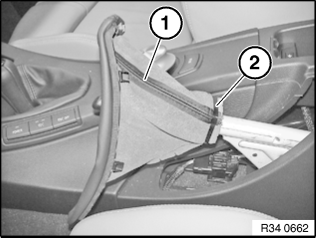

Fig 2: Handbrake Gaiter And Cable Ties

Courtesy of BMW OF NORTH AMERICA, INC.
