34 11 000 Removing and installing or replacing brake pads on both front disc brakes (TRW floating caliper)
Necessary preliminary tasks:
- Remove wheels
- Remove brake pad wear sensor

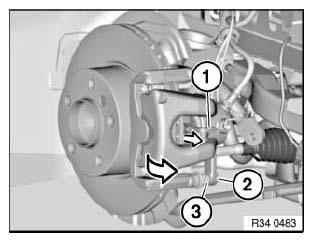

Pull brake pad wear sensor (1) towards rear out of lining (left side only).
If necessary, replace brake pad wear sensor.
Release guide screw (2).
If necessary, grip at hexagon head (3).
Tilt brake caliper upwards.
Installation:
Replace guide screws.
For tightening torque refer to 34 11 5AZ in 34 11 FRONT BRAKE .

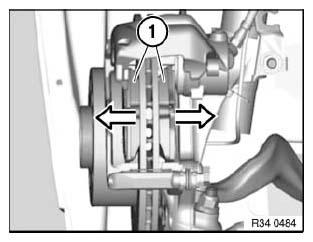

Remove brake pads (1) in direction of arrow from brake console.
In the event of one-sided brake pad wear, do not change brake pads round.
Observe minimum thickness of brake pads.
Clean brake pads.
Do not apply grease to brake pad backplate.
Check minimum brake disc thickness:
- Position special tool 34 1 280 at three measuring points in area (1) and measure.
- Compare measurement result and lowest value with setpoint value.
New brake pads may only be installed if the brake disc thickness is greater than or equal to the minimum brake disc thickness (MIN TH).
Press brake piston fully back with special tool 34 1 050 .
Overflowing brake fluid will damage the paintwork.
Check dust sleeve (1) for damage and replace if necessary.

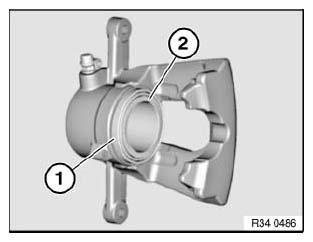

Clean contact face (2) of brake piston and apply a thin coating of anti-squeak compound.

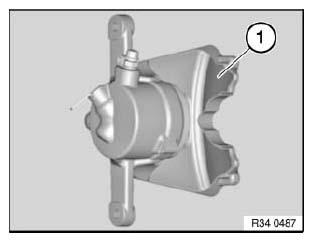

Clean contact face (1) of brake caliper and apply a thin coating of anti-squeak compound.
Clean hammerhead guides and apply a thin coating of anti-squeak compound.
Replacement:

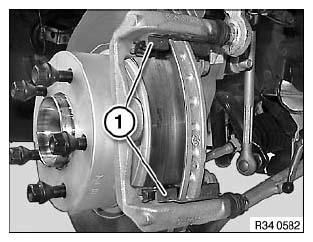

Remove lining retaining springs (1).
Installation:
Clean contact face of brake carrier and apply a thin coating of anti-squeak compound.
- Fully depress brake pedal several times so that brake pads contact brake discs.
- When installing new brake pads at front and rear axles, brake fluid level must be brought up to "MAX" marking.
- Read and comply with notes on braking in new brake discs / brake pads .
- When replacing linings, reset CBS display in accordance with factory specification.
