33 52 031 Replacing rear left or right rubber mount for shock absorber mounting

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Danger of injury!

Car may tilt off lifting platform if the workshop jack is incorrectly handled.

Release nut; if necessary brace on hex head.

Raise wheel carrier with workshop jack until shock absorber can be removed from rubber mount.

Installation:

Replace self-locking nut.

For tightening torque refer to 33 52 2AZ in 33 52 SHOCK ABSORBERS .

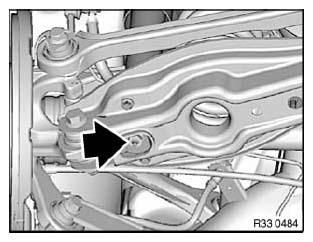

Fig 1: Self-Locking Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

For tightening torque refer to 33 52 3AZ in 33 52 SHOCK ABSORBERS .

Press shock absorber upwards and remove rubber mount (2) from camber arm.

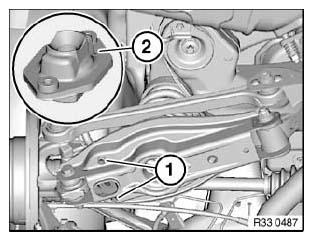

Fig 2: Camber Arm Rubber Mount And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
