33 32 035 Replacing a rubber mount for trailing arm in rear axle carrier

Special tools required:

• 33 4 450
• 33 4 451
• 33 4 452
• 33 4 453
• 33 4 454
• 33 4 465
• 33 4 466
• 33 4 471
• 33 4 472
• 33 4 474
• 33 4 475

Necessary preliminary tasks:

• Remove trailing arm from rear axle carrier

Removing rubber mount:

Mark installation position of rubber mount by way of slot to rear axle carrier.

Pull out rubber mount with special tools 33 4 472, 33 4 474, 33 4 475, 33 4 466 and 33 4 465.

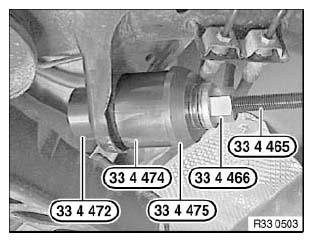

Fig 1: Special Tools (33 4 472), (33 4 475), (33 4 466), (33 4 465) And (33 4 474)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new rubber mount:

If necessary, release knurled screws 33 4 452 and pull off mounting 33 4 455 with spring steel 33 4 456.

Insert rubber mount with spray-on points facing upwards in special tools 33 4 451, 33 4 452, 33 4 454, 33 4 453 and pull together.

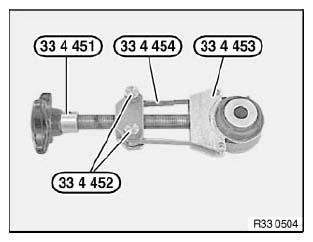

Fig 2: Special Tools (33 4 451), (33 4 454), (33 4 453) And (33 4 452)

Courtesy of BMW OF NORTH AMERICA, INC.

All models except M3:

Align rubber mount by way of slot (1) at an angle to rear axle carrier.

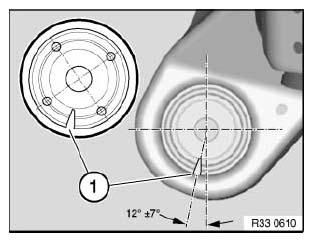

Fig 3: Aligning Rubber Mount By Way Of Slot At An Angle To Rear Axle Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

M3:

Align rubber mount by way of slot (1) at an angle to rear axle carrier.

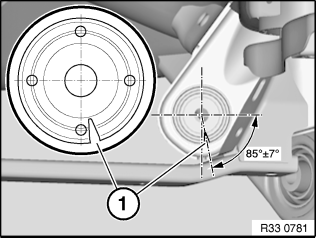

Fig 4: Aligning Rubber Mount By Way Of Slot At An Angle To Rear Axle Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Align rubber mount by way of slot to marking on rear axle carrier.

Draw rubber mount a little into rear axle carrier with special tools 33 4 471, 33 4 474, 33 4 475, 33 4 466 and 33 4 465.

Remove special tool 33 4 450.

Apply a thin coating of Loctite 638 to new rubber mount.

Draw in rubber mount as far as it will go.

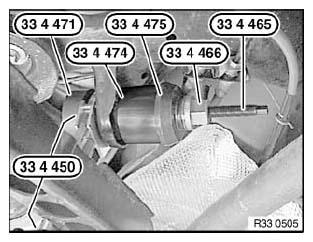

Fig 5: Special Tools (33 4 471), (33 4 450), (33 4 475), (33 4 466), (33 4 465) And (33 4 474)

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Carry out wheel/chassis alignment check
