33 32 031 Replacing rubber mount for trailing arm in wheel carrier

WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2013 BMW 328i, 2012 BMW 328i, 2011 BMW 328i, 2010 BMW 335i, and 2010 BMW 328i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

33 4 450
33 4 451
33 4 452
33 4 453
33 4 454
33 4 465
33 4 466
33 4 472
33 4 473
33 4 474
33 4 475

Necessary preliminary tasks:

Remove trailing arm from wheel carrier

Removing rubber mount:

Pull out rubber mount with special tools 33 4 465, 33 4 466, 33 4 475, 33 4 474 and 33 4 472.

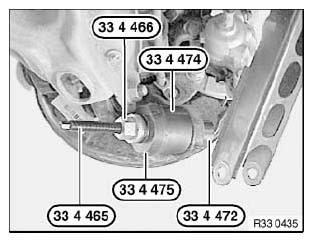

Fig 1: Special Tools (33 4 465), (33 4 466), (33 4 474), (33 4 472) And (33 4 475)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing new rubber mount:

Insert rubber mount with spray-on points facing upwards in special tools 33 4 451, 33 4 452, 33 4 454, 33 4 453 and pull together.

Insert rubber mount in special tool 33 4 473.

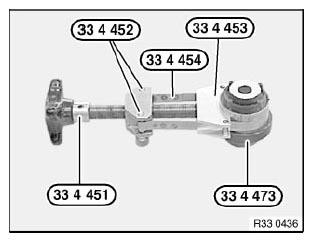

Fig 2: Special Tools (33 4 451), (33 4 452), (33 4 453), (33 4 473) And (33 4 454)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Spray-on points of rubber mount must point to rear!

Align rubber mount by way of slot (1) at an angle to wheel carrier.

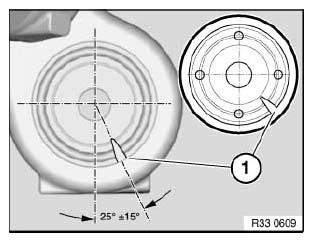

Fig 3: Aligning Rubber Mount By Way Of Slot At An Angle To Wheel Carrier

Courtesy of BMW OF NORTH AMERICA, INC.

Draw rubber mount with special tools 33 4 465, 33 4 466, 33 4 475, 33 4 474 and 33 4 473 a little into wheel carrier.

Remove special tool 33 4 450 and draw in rubber mount as far as it will go.

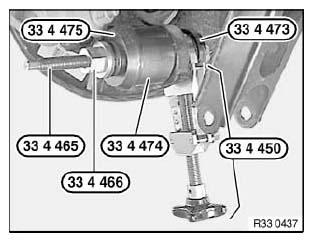

Fig 4: Special Tools (33 4 465), (33 4 474), (33 4 450), (33 47 473), (33 4 475) And (33 4 466)

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Carry out wheel/chassis alignment check
