32 41 253 Removing and installing / replacing fluid reservoir for power steering with active front steering
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Danger of poisoning
if oil is ingested/absorbed through the skin!
Risk of injury if oil comes into contact with eyes and skin!
Recycling:
Catch and dispose of hydraulic fluid in a suitable container.
Observe country-specific waste-disposal regulations
Necessary preliminary tasks:
- Draw off and dispose of hydraulic fluid from fluid reservoir
M57T2 335d:
- Unclip water hose from coolant expansion tank

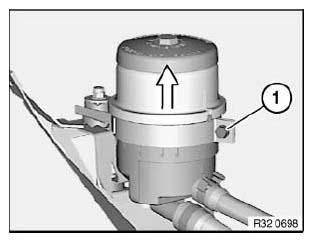

Release screw (1).
For tightening torque refer to 32 41 1AZ in 32 41 PUMP AND OIL SUPPLY .
NOTE:
If necessary, raise and/or turn fluid reservoir in order to gain better access to hose clamps.
Unfasten hose clips.
Disconnect suction line and radiator return line from fluid reservoir.
Lift out fluid reservoir.
After installation:
- Fill and bleed hydraulic system
- Check pipe connections for leaks
