25 11... Replacing shift rod

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear assembly underside protection
Remove heat shields

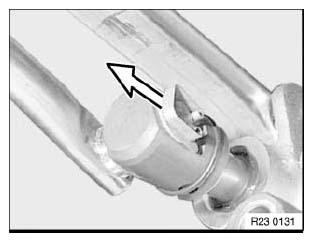

Detach locking clip.

Fig 1: Removing Locking Clip

Courtesy of BMW OF NORTH AMERICA, INC.

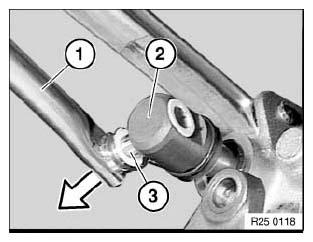

Pull shift rod (1) out of shift rod joint (2).

Installation:

Grease shift rod pin (3).

Fig 2: Pulling Shift Rod Out Of Shift Rod Joint

Courtesy of BMW OF NORTH AMERICA, INC.

Detach locking clip (1).

Remove selector rod (2).

Installation:

Grease selector rod pin.

Fig 3: Identifying Locking Clip And Selector Rod

Courtesy of BMW OF NORTH AMERICA, INC.
