25 11 250 Removing and installing/replacing vibration damper
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove shift lever cover.
- Remove Shift Lever Knob.

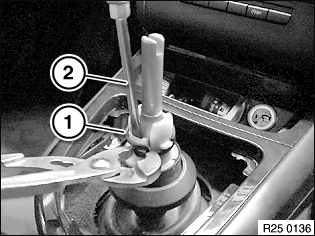

Open clamp (1) on vibration damper with pliers.
Unlock vibration damper with screwdriver (2) (there is a locking notch on one side only).

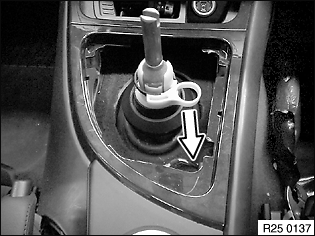

Lift out vibration damper.
Installation:
In the case of a new vibration damper which has been attachment to the shift lever, only the retainer (1) still needs to be unlocked.
Make sure the vibration damper is correctly engaged in the shift lever.
