25 11 211 Replacing shift arm for shift-lever mount

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Shift Lever
Remove transfer case (AWD)

Lever support bearing (1) out of fixture.

Fig 1: Support Bearing And Removal Direction

G04726184

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install support bearing (1) with arrow (2) facing upwards in holder.

Fig 2: Support Bearing, Arrow And Installation Direction

G04726185

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock bearing pin (1) in direction of arrow and remove.

Installation:

Grease bearing pin.

Grease, refer to BMW Service Operating Fluids. .

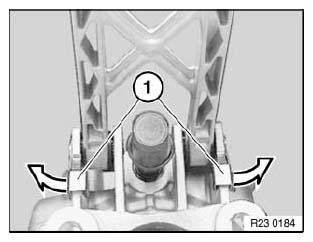

Fig 3: Bearing Pin And Removal Direction

G04726186

Courtesy of BMW OF NORTH AMERICA, INC.

Remove shift arm.

Detach support bearing (1) from shift arm.

Installation:

Grease bearing journal.

Grease, refer to BMW Service Operating Fluids. .

Attach support bearing (1) with opening (3) towards rear on shift arm.

Fig 4: Support Bearing And Opening

G04726187

Courtesy of BMW OF NORTH AMERICA, INC.

Replace bearing bush if damaged.

Press out bearing bush.

Coat new bearing bush with Circolight and then press into shift arm until side flanges of bearing bush protrude uniformly.

Fig 5: Bearing Bush

G04726188

Courtesy of BMW OF NORTH AMERICA, INC.
