25 11 111 Replacing shift rod joint

Necessary preliminary tasks:

• Release propeller shaft at transmission and center mount.

  Tie propeller shaft to one side.

  Tasks are described in Removing Propeller Shaft.

• Remove transfer case (AWD)

Lift off retainer (1).

Disconnect shift rod (2).

Installation:

Grease shift rod.

Grease, refer to BMW Service Operating Fluids. .

Make sure shims (3) are in correct position.

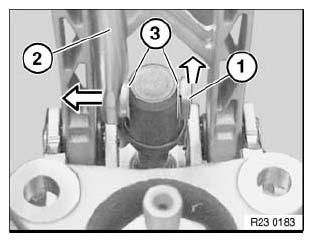

Fig 1: Retainer, Shift Rod, Shims And Removal Directions

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 2: Identifying Retaining Web

Courtesy of BMW OF NORTH AMERICA, INC.

Lever spring washer (1) out of groove and push a little towards rear.

Press dowel pin (2) upwards/downwards out of shift rod joint and remove shift rod joint.

Installation:

Grease ball of selector shaft.

Grease, refer to BMW Service Operating Fluids. .

Replace spring washer (1).

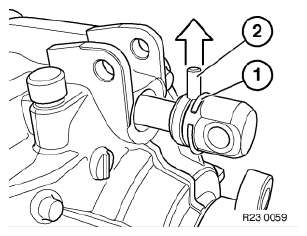

Fig 3: Spring Washer, Dowel Pin And Removal Direction

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check rubber ring (1) in shift rod joint (2) and replace if necessary.

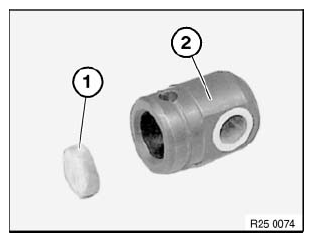

Fig 4: Rubber Ring And Shift Rod Joint

Courtesy of BMW OF NORTH AMERICA, INC.
