25 16 065 Replacing gaiter (selector lever cover) for shift tower

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2013 BMW 328xi, 2013 BMW 328i, 2012 BMW 328xi, 2012 BMW 328i, and 2011 BMW 328xi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Grip

Carefully pull gaiter taut on leather
Gently press frame inwards until catch is released
Lift out gaiter

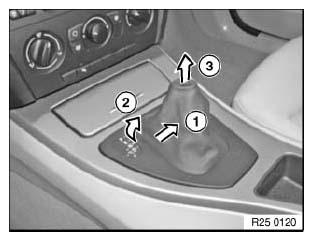

Fig 1: Gaiter Removal Directions
Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Start removing at top left, otherwise the frame will be damaged.

Installation:

Retaining lugs must not be damaged.

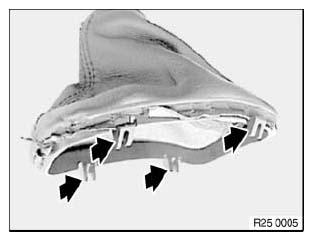

Fig 2: Gaiter Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
