Release nut and disengage cable (1).
Installation:
Unfasten nut.
Adjust cable by means of holder (2) until spacing A = 1 mm is obtained
Tighten nut.

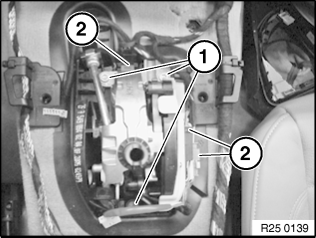

Release screws (1).
For tightening torque refer to 25 16 3AZ in 25 16 SHIFT CONSOLE - AUTOMATIC TRANSMISSION .
Disconnect plug connections (2).
Remove cables from holders.
Lift shift tower out of center console.
